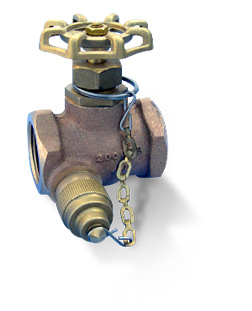

FEATURES

• 200 lbs. WOG
• Threaded Ends
• Rising Stem
• Body Material: Bronze Conforming to ASTM B584
• 100% Pressure Tested
• Modular Disc Holder

Application:  Power transformers, oil switches, and other electrical apparatus for loading, sampling or draining coolant.

Construction:  Valves are full pattern heavy duty body with a union type or inside bonnet for optimum strength. The heavy duty design provides safe margin of protection from physical damage.

Disc:  Valves are furnished with a nylon or PTFE disc. These materials are impervious to most coolants. Nylon offers a conformity to any irregularities that may develop in the seat and provide a leakproof shutoff. PTFE has a very high resistance to wear yet it is resilient, which enables it to conform to irregularities and provide a tight shut off.

Handwheel:  Cast from high strength bronze and may be used in most conditions without concern for electrolytic action cast from CDA 844 (81-3-9) and meets Spec. ASTM-B-584. Handwheels are available in die cast aluminum alloy.

Catalog Numbers

• Die-Cast Handle
  1/4"

  372001-01




  1/2"

  372007-01




  3/4"

  372006-01




  1"

  373015-01




  1-1/2"

  -




  2"

  -



• Bronze Cast Handle
  1/4"

  372001-02




  1/2"

  372007-03




  3/4"

  372006-02




  1"

  373015-04




  1-1/2"

  372032-02




  2"

  373020-02




Catalog Numbers

• Die-Cast Handle (w/o sampler)
  1"

  373010-03




  1-1/2"

  -




  2"

  -



• Bronze Cast Handle (w/o sampler)
  1"

  373010-04




  1-1/2"

  372033-04




  2"

  373021-04



• Die-Cast Handle (w/ sampler)
  1"

  373011-01




  1-1/2"

  -




  2"

  -



• Bronze Cast Handle (w/ sampler)
  1"

  373011-02




  1-1/2"

  372033-03




  2"

  373022-03




** All sizes of valves are available with installed pipe plug **

Catalog Numbers

• w/o gasket groove w/o sampler
  1"

  372018-06




  2"

  372038-01



• w/o gasket groove w/ sampler
  1"

  372018-02




  2"

  372039-01



• w/ gasket groove w/o sampler
  1"

  372018-05




  2"

  372036-01



• w/ gasket groove w/ sampler
  1"

  372018-07




  2"

  372037-01




*GG Refers to Gasket Groove*

Both 1" and 2" Flanged Inlet Valves are Available with the Following Options:

• (A) Untapped Boss (Solid Boss)
• (B) 7/16" Bolt Holes
• (C) With 3/8" Pipe Plug Installed in Tapped Boss
• (D) With Pipe Plug Installed in Outlet End of Valve

ALL FLANGED VALVES ARE EQUIPPED WITH A CAST BRONZE HANDWHEEL

Bronze Globe Valve dimensional data is available in the Transformer Drain Valve Catalog
