Pneumatic CYLINDERS SERIES 900 CLAMPING
DOWNLOAD SERIES 900 CATALOG

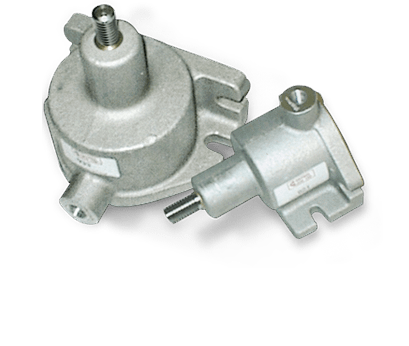

SERIES 900
CLAMPING CYLINDERS
Application Information
- Single acting, spring return cylinder available in 2", 3" or 4" bore sizes in 1" and 2" stroke lengths.
- Cast aluminum body is corrosion resistant.
- Body is designed for horizontal or vertical mounting. Slotted mounting holes permit fast and easy installation or relocation.
- For air service up to 150 PSI.
- Stress proof steel chrome plated piston rod.
- Available with threaded and non-threaded piston rods.
SERIES 900 ORDERING INFORMATION
Select three digit model number which pertains to bore and stroke from chart below.

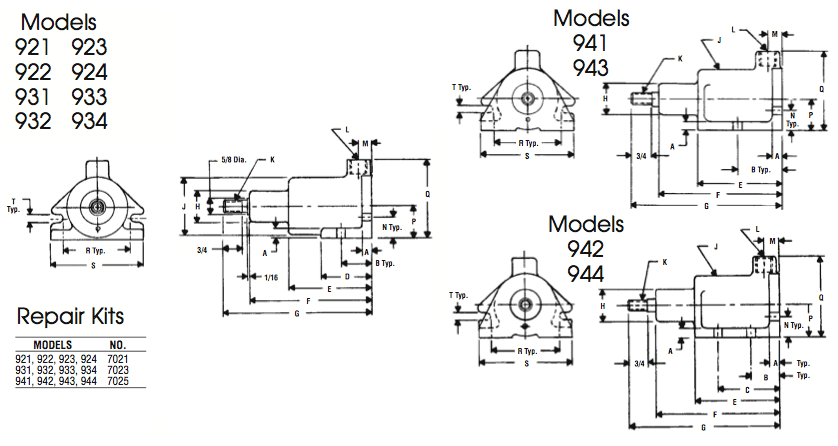

DIMENSIONS
| Th'd Rod Model No. |
Non-Th'd Rod Model No. |
Bore Dia. In. |
Stroke In. |
Spring Force Lbs. |
A | B | C | D | E | F | G | H Dia. | J Dia. | K Th'd. | L NPTF | M | N | P | Q | R | S | T |
| 921 | 923 | 2 | 1 | 9-18 | 3/8 | 1-3/16 | – | 2 | 2-1/8 | 3-3/4 | 4-3/4 | 1-1/4 | 2-3/8 | 1/2-13 | 1/8-27 | 35/64 | 27/32 | 1-9/32 | 3-7/32 | 2-5/8 | 3-5/8 | 9/32 |
| 931 | 933 | 3 | 1 | 20-38 | 1/2 | 1-1/4 | – | 2-1/16 | 2-3/8 | 4-3/16 | 5-3/16 | 1-3/8 | 3-3/8 | 1/2-13 | 1/4-18 | 19/32 | 1-7/32 | 1-27/32 | 4-11/32 | 3-5/8 | 4-7/8 | 13/32 |
| 932 | 934 | 3 | 2 | 20-55 | 1/2 | 1-1/4 | – | 2-1/16 | 3-3/8 | 5-3/16 | 6-3/16 | 1-3/8 | 3-3/8 | 1/2-13 | 1/4-18 | 19/32 | 1-7/32 | 1-27/32 | 4-11/32 | 3-5/8 | 4-7/8 | 13/32 |
| 941 | 943 | 4 | 1 | 25-30 | 1/2 | 1-11/16 | – | – | 2-23/32 | 5-13/32 | 6-13/32 | 2 | 4-1/2 | 3/4-10 | 1/4-18 | 3/4 | 1-3/8 | 2-3/8 | 5-5/16 | 4-11/16 | 6 | 7/16 |
| 942 | 944 | 4 | 2 | 20-30 | 1/2 | 1-3/16 | 2-5/8 | – | 3-23/32 | 6-13/32 | 7-13/32 | 2 | 4-1/2 | 3/4-10 | 1/4-18 | 3/4 | 1-3/8 | 2-3/8 | 5-5/16 | 4-11/16 | 6 | 7/16 |
